Compaction Baling Machines Trash Chutes Odor Control Containers Other
Compaction Equipment – Kitchen/Inside Compactors
These indoor compactors all offer superior design and construction using stainless steel throughout. They all provide huge savings in trips to the dumpster, fewer pickups by the hauler, improved security, easier housekeeping, superior sanitation and a quick return on your investment.

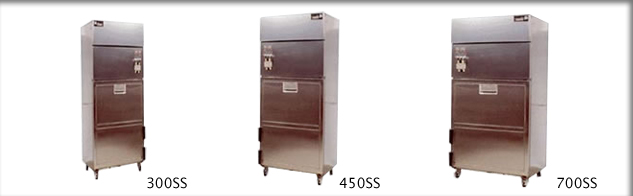

  Model 300SS Model 450SS Model 700SS
Height
   71 in. (180 cm) 78 in. (198cm) 78 in. (198 Cm)
Width
   23 in. (59 Cm) 29 in. (74 Cm) 41 in. (104 Cm)
Depth
   25 in. (64 Cm) 30 in. (77 Cm) 30 in. (77 Cm)
Loading Door
   19 in. W x 16 in. H 24 in. W X 19 in. H 36 in. W X 19 in. H
Cube Capacity
   3.3 Cu. Ft. (95 L) 6.0 Cu. Ft. (170 L) 9.0 Cu. Ft. (255 L)
Reduction Ratio
   Up to 25:1 Up to 25:1 Up to 25:1
Motor
   2 HP 2 HP 2 HP
Ram Pressure
   11,780 Lbs. Max 16,964 Lbs. Max 30,158 Lbs. Max
Cycle Time
   16 Seconds 21 Seconds 25 Seconds
Cylinder Size
   2 1/2 Inches 3 Inches 4 Inches
Electrical Power
   115V/230V Single Phase 115V/230V Single Phase 115V/230V Single Phase
Circuit Size


115V -50 AMPS

230V - 25 AMPS

115V -50 AMPS

230V - 25 AMPS

115V -50 AMPS

230V - 25 AMPS
Actual Weight
   660 LBS. (300 Kg) 980 LBS. (444 Kg) 1,280 Lbs. (300 Kg)
Full Cube Weight
   Up to 125 LBS. (57 Kg) Up to 250 LBS. (113 Kg) Up to 350 Lbs. (159 Kg)




Dimensions
Size     6'8"x28"x34"
Weight     580 lbs
Performance
Pressure     4400 lbs
Cycle Time     25 s
Electrical Data
Electrical Specification   220V/1/ 10A
Effect     0.5HP
Other Data
Piston Stroke     22"
Protection Class     IP55
Noise Level     59 dB

ORWAK 4000

Orwak 4000 is the smart investment for food service operations and retail stores using roller carts. Fill it with more garbage and less air.
Works with most 35-95 gallon carts.


Dimensions
Size     2'7"x40"x76"
Weight     680 lbs
Performance
Pressure     6600 lbs
Press Force     21 p.s.i.
Cycle Time     30 s
Electrical Data
Electrical Specification     115V/1/60 20A
Effect     0.5HP
Other Data
Piston Stroke     31"
Protection Class     IP55
Noise Level     59 dB
Ceiling Clearance   8'9"

The Simple Compactor ORWAK 5030
Back in 1971 Orwak invented the ingenious idea of placing the bag on the outside of a bottomless drum. The drum is then protecting the bag while compacting. No more torn bags! Load your kitchen garbage or recyclable materials into the drum, pull the power head forward and start compacting. Repeat loading until the drum is full. Release the drum and it will rise leaving the bag on the base plate, easy to remove.

With a compaction ratio of up to 10:1, you not only save on your garbage hauling bill, but you also reduce the number of trips to the dumpster. Neater work environment and improved security are added benefits.

ORWAK Little Elephant
The Little Elephant is the only system on the market specifically designed for businesses with low waste volume. Saves time, money and space.

Model
Height
Width
Depth
Weight
TLP80-1
75"
32"
32"
186 lbs.
TLP80-2
75"
60"
32"
243 lbs.
TLP80-3
75"
88"
32"
300 lbs.
TLP100-1
75"
38"
32"
203 lbs.
TLP100-2
75"
72"
32"
267 lbs.
TLP100-3
75"
106"
32"
331 lbs.
