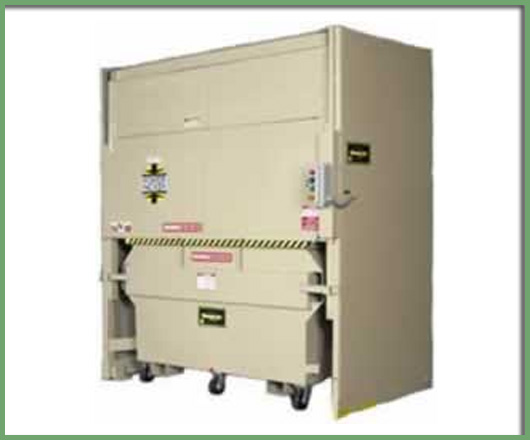

| P200 Specifications |
| Container Capacity |
2 Cubic Yard |
| Ram Face |
48" (1219mm) x 27" (686mm) |
| Ram Pressure @ 2000 |
28,300 lbs. (12,837Kg) |
| Cycle Time |
28 seconds |
| Twin Cylinders |
3" (76mm) Bore, 1.5 (38mm) Rod, 37.25" (952mm) Stroke |
| Motor |
2 HP, TEFC |
| Pump |
Two Stage |
| Electric Power |
115/230V-1PH-60HZ |
| Oil Capacity |
6 Gallons |
|
| P200 Dimensions |
| Loading Door Opening |
85" (2160mm) x 24" (610mm) |
| Overall Height |
102" (2590mm) |
| Container Height |
47" (1190mm) |
| Overall Length |
101" (2570mm) |
| Overall Width |
58" (1470mm) |
| Shipping Weight - Compactor |
3,250 lbs. (1,474Kg) |
| Shipping Weight - Container |
734 lbs. (333Kg) |
OPTIONS:
Air Sanitizer
3 Phase Power Unit
Through The Wall Chutes
Additional Colors Available
Right/Left Side Control Panel
Front or Rear loading Container
|
